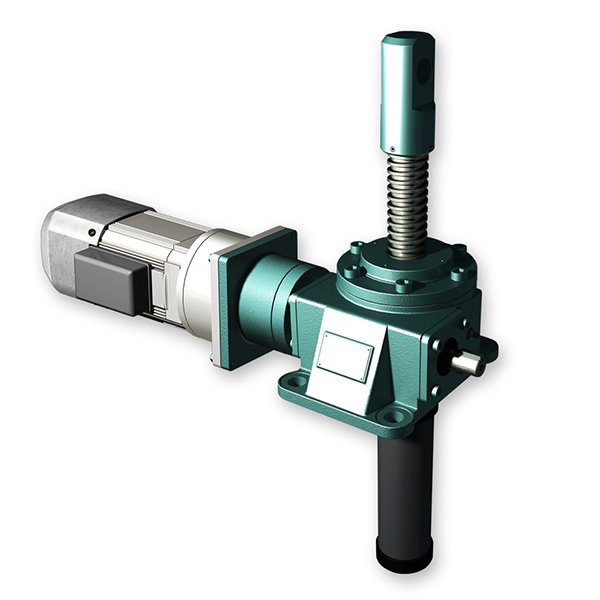

Geared Motor Jack

Outline

A wide variety of models are available to meet your purpose, ready for use immediately upon installation.

Ready for immediate use after installation as it comes equipped with a geared motor.
Equipped with a compact, low-noise geared motor.
Features excellent inverter drive motor characteristics.
Provides a wide range of torque options when combined with our original inverter.
Standardized at 1/3 against the reduction gear ratio of geared motors.

Output	0.1〜3.7kw
Number of poles	4P
Number of phases	Three-phase
Voltage	200/200/220V
Frequency	50/6060Hz
Gear ratio	1/3、1/5、1/10
Rating	Continuous
Heat resistance class	E（0.1〜0.4kW）、B（0.75〜3.7kW）
Starting method	Direct start
casing construction (cooling method)	Totally enclosed, fan-cooled (except three-phase 0.1 kW, which is totally enclosed, self-cooled model)
Protective construction	Indoor type (corresponding to IP44)
Mounting method	Flange mounting (concentric)
Mounting direction	Any direction
Installation site	Indoor (not exposed to corrosive gas, oil mist, flammable gas, and dust)
Ambient temperature	-15 ~ 40℃ (no freezing)
Ambient humidity	No more than 90%
Altitude	No more than 1000 m above sea level
Vibration	Normally: no more than 4.9 m/s2, Instantaneously: no more than 9.8 m/s2 (compliant with JIS C 0911
Braking method	Direct current (DC) spring brake
Applicable standard	JEC、JEM
Lubrication method	Grease lubrication (filled with Pyronoc Universal No. 000)
Paint color	Silver (corresponding to Munsell N6.0)
Accessories	Shaft end key (JIS B 1301-1976)
